EQUIPMENT SPECIFICATION

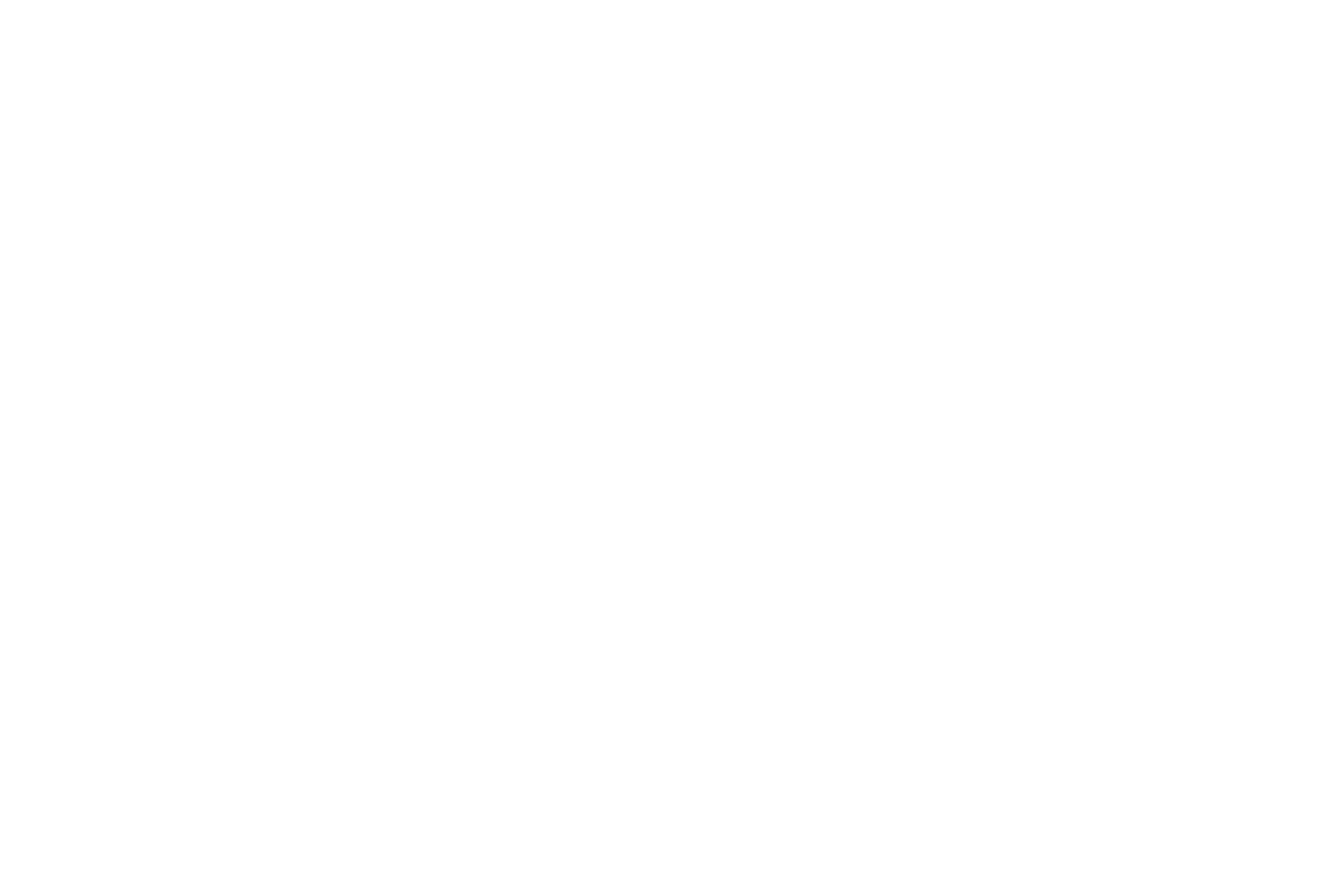

20' Spring Ride, Slider
Payload: One 20' ISO Container
Equipment features may vary based upon model year, trailer type and location. Current specifications are subject to verification prior to usage.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
7.1 m (C) / 8.3 m (E)
23' 6'' closed / 27' 6'' ext.
Overall Width
2,438 mm
96''
Overall Frame Width
2,438 mm
96''
Coupler Height
1,219 mm
48''
Kingpin Setting
-
24'' (from crossmember)
Weight (+/- 3%)
2,994 kg
6,600 lbs
Mechanics & Features
- Suspension: Tandem axle, 2-position, sliding spring-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant.
- Tires: 10.00 x 20 premium bias tires.
- Wheels: 20" steel spoke wheels with 7.5" x 20" tube-type rims.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 2 sensor / 1 modulator-valve system.
- Upper Coupler: AAR certified coupler with 5/16" 5th-wheel plate.
- Main Frame: High-tensile steel main beams with formed steel channel crossmembers.
- Landing Gear: AAR certified, 2-speed with tilt-cushion sand shoes (5 crossmember mount).
- Twist Locks: Cast steel design for 20' container transport.
- Air Connections: Stationary gladhands.
