EQUIPMENT SPECIFICATION

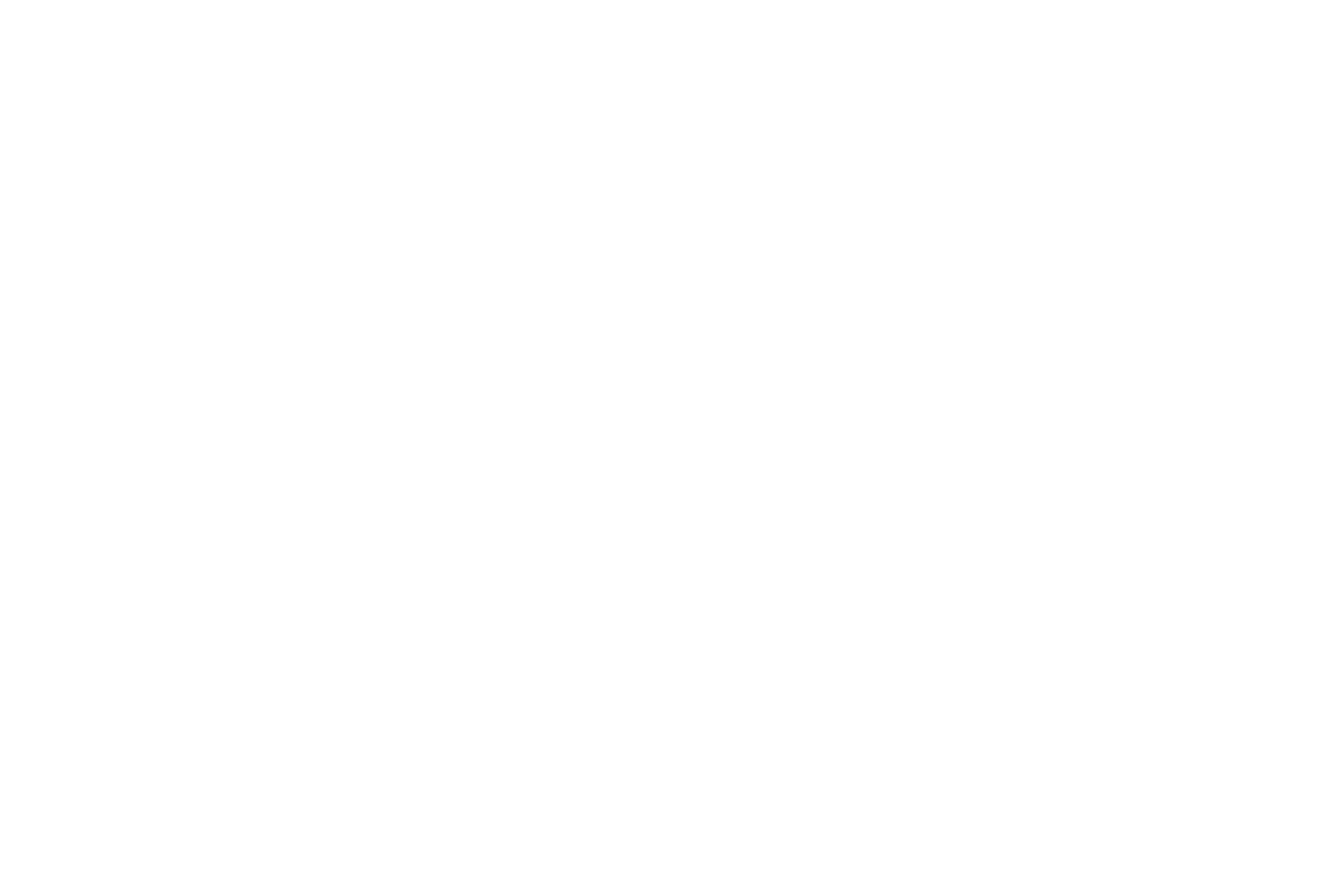

24 Metric Ton Spring Ride, Slider
Payload: One 20' ISO Container (24 Metric Tons)
Equipment features may vary based upon model year, trailer type and location. Current specifications are subject to verification prior to usage.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
10.0 m (C) / 12.5 m (E)
33' 3'' closed / 41' 3'' ext.
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height
1,321 mm
52''
Coupler Height
1,219 mm
48''
Kingpin Setting
457 mm
18''
Weight (+/- 3%)
4,944 kg
10,900 lbs
Mechanics & Features
- Suspension: Tridem axle, 2-position, sliding single leaf-spring suspension.
- Axles: 5/8" axle wall, 25,000 lb. capacity with synthetic wheel-end lubricant.
- Tires: 11x22.5 premium radial tires.
- Wheels: 20" steel spoke wheels with 8.25" x 22.5" tubeless rims.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 2 sensor / 1 modulator-valve system.
- Main Frame: One piece, 14" deep, wide-flange I-beams.
- Bolsters: Box-type bolsters with 3/8" x 8" top plate.
- Landing Gear: AAR certified, 2-speed with internal gearbox and low-profile sand shoes.
- Air Connections: Swivel gladhands for easy connection.
