EQUIPMENT SPECIFICATION

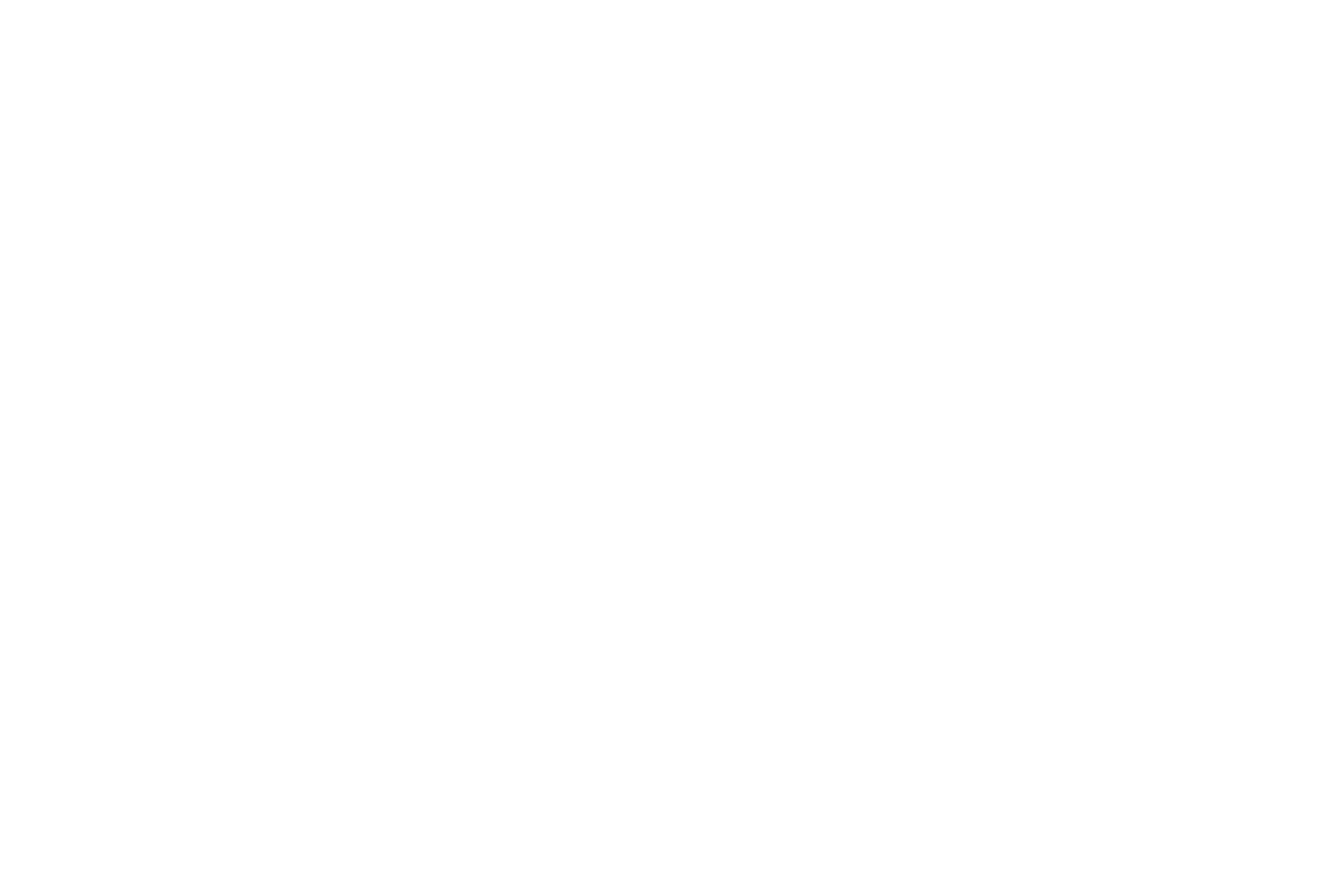

40' Spring Ride, Gooseneck
Payload: One 40' ISO Container
Equipment features may vary based upon model year, trailer type and location. Current specifications are subject to verification prior to usage.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
12.19 m
40'
Overall Width
2,438 mm
96''
Overall Frame Width
2,438 mm
96''
Overall Height (Deck)
1,219 mm
48''
Kingpin Setting
-
30'' (from rear face)
Weight (+/- 3%)
2,994 kg
6,600 lbs
Mechanics & Features
- Suspension: Fixed position tandem axles with spring-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant.
- Tires: 10.00 x 20 premium bias tires.
- Wheels: 20" steel spoke wheels with 7.5" x 20" tube-type rims.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 2 sensor / 1 modulator-valve system.
- Upper Coupler: AAR certified coupler with 5/16" 5th-wheel plate.
- Main Frame: High-tensile steel main beams.
- Twist Locks: Heavy-duty cast steel design.
- Landing Gear: AAR certified, 2-speed with tilt-cushion sand shoes.
- Electrical: 7-way ATA plug with sealed-beam lights and internal ground.
