EQUIPMENT SPECIFICATION

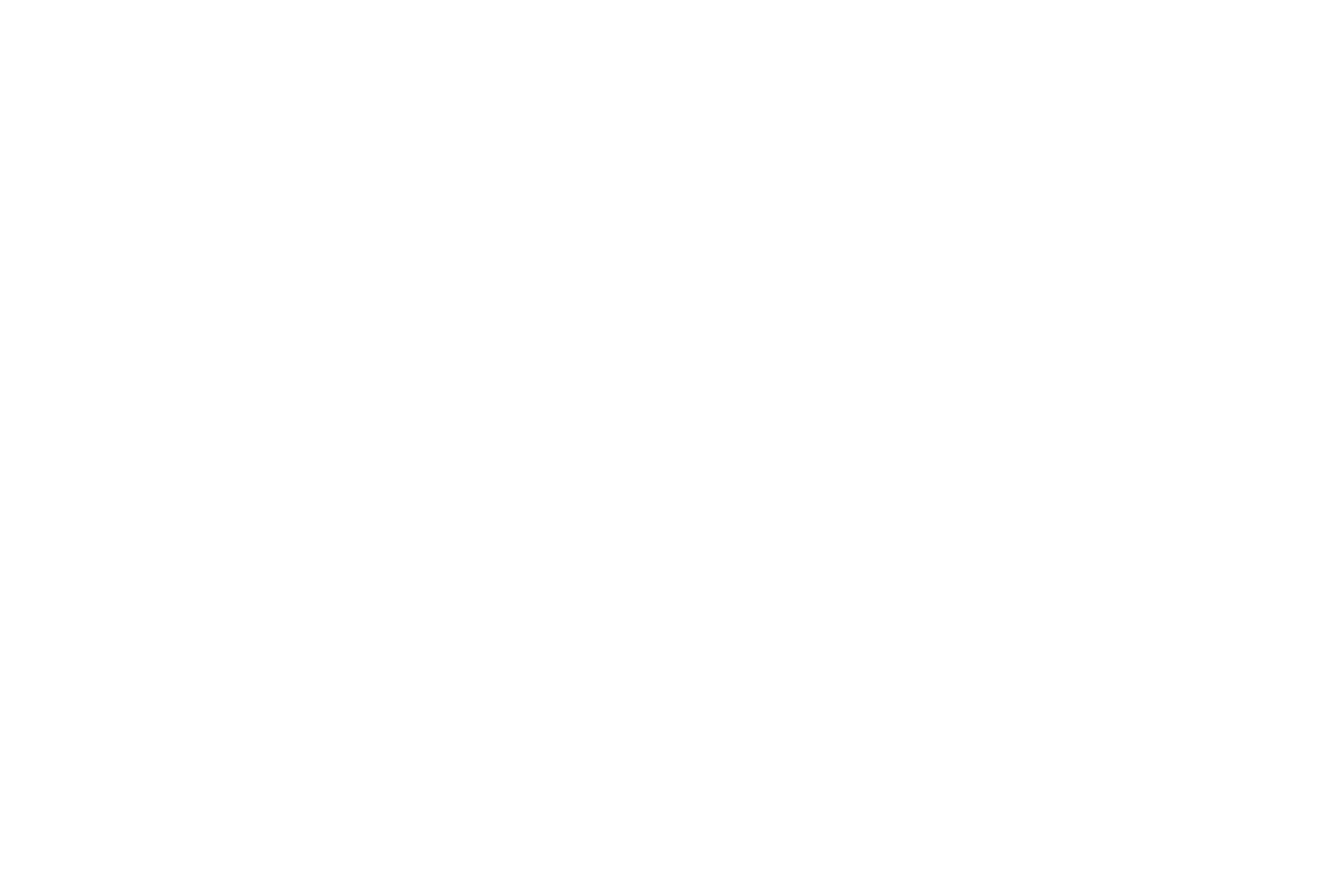

Combo Chassis
GVWR: 67,000 lbs | Payload: 1x 20'/40' ISO or 2x MT 20'
Equipment features may vary based upon model year, trailer type and location. Current specifications are subject to verification prior to usage.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
12.5 m
41' extended
Overall Width
2,438 mm
96''
Overall Frame Width
2,438 mm
96''
Deck Height (- Rear)
1,219 mm
48''
Coupler Height
1,181 mm
46.5''
Kingpin Setting
406 mm
16''
Weight (+/- 3%)
4,717 kg
10,400 lbs
Mechanics & Features
- Suspension: Tridem axle, 2-position, sliding single leaf-spring suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant.
- Tires: 255/70R22.5 premium radial tires.
- Wheels: 22.5 steel disc.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change extended life brake shoes.
- ABS: 4 sensor / 2 modulator-valve system.
- Upper Coupler: AAR certified coupler with 1/4" pick-up and 5th-wheel plates.
- Main Frame: One piece, 6" front and 16" rear deep, wide-flange I-beams.
- Twist Locks: Cast steel design with retractable centers and non-retractable ends.
- Landing Gear: AAR certified, 2-speed with internal gearbox and low-profile sand shoes.
