DRY VANS
28
EQUIPMENT SPECIFICATION

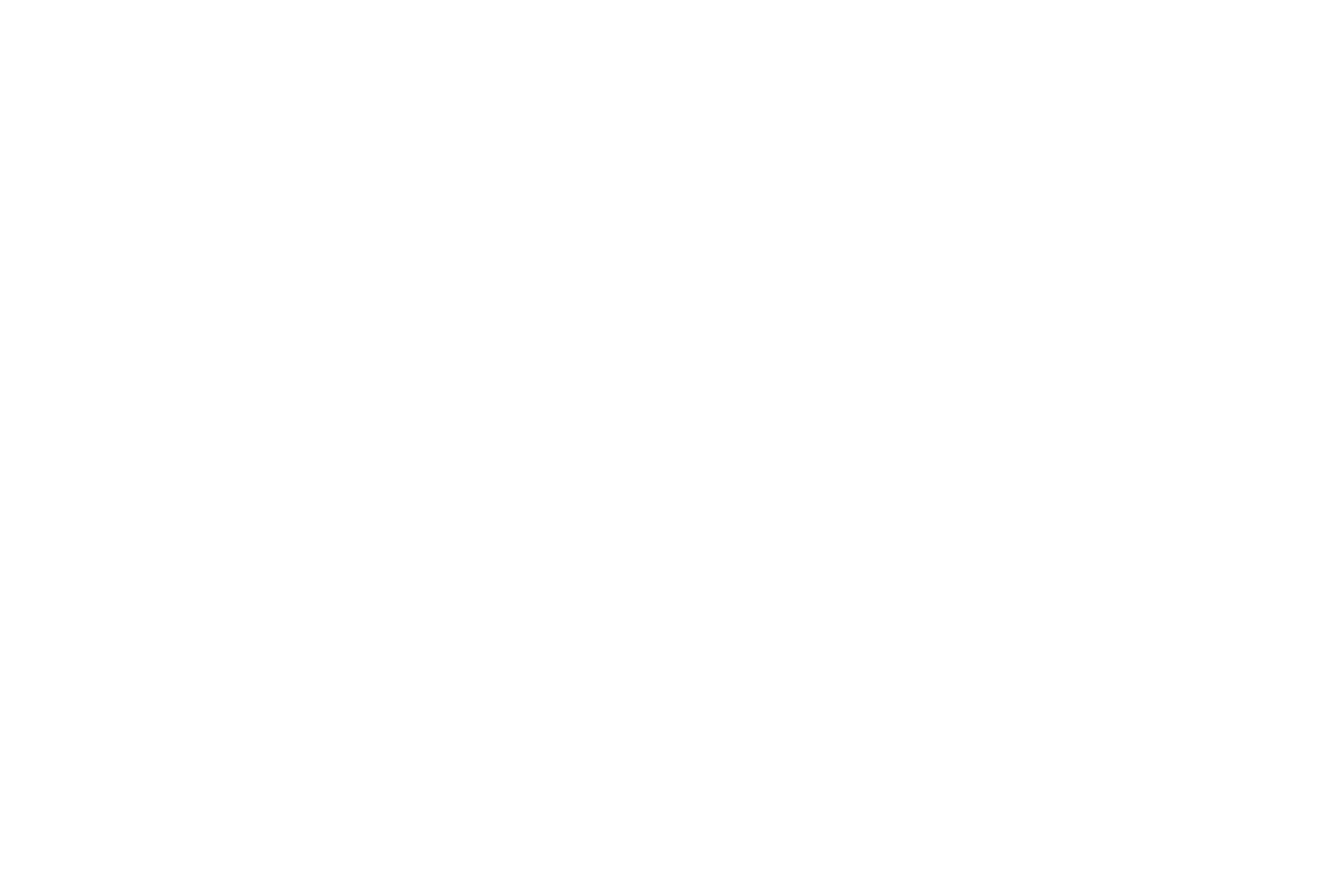

28' Air-Ride, Roll-Door
Cubic Capacity: 2,070 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
8.53 m
28'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Overall Height
4,115 mm
13' 6''
Coupler Height
1,194 mm
47''
Kingpin Setting
762 mm
30''
Dock Height
1,270 mm
50''
Inside Width (at liner)
2,515 mm
99''
Inside Height
2,718 mm
107''
Cubic Capacity
58.62 m³
2,070 ft³
Weight (+/- 3%)
3,629 kg
8,000 lbs
Door Opening
Feature
Metric
Imperial
Width
2,489 mm
98''
Height
2,667 mm
105''
Mechanics & Features
- Suspension: Fixed single axle with air-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant
- Tires: 295/75R 22.5 premium radial tires
- Wheels: 8.25" x 22.5" steel hub-piloted wheels
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes
- ABS: 2 sensor / 1 modulator-valve system
- Upper Coupler: AAR certified coupler with 1/4" pick-up plate and 5/16" 5th-wheel plate. Interior coupler surfaces sealed with corrosion resistant coating
- Crossmembers: 4" steel I-beam crossmembers on 12" centers with additional crossmembers at rear on 8" centers. Inverted-hat crossmembers from landing gear forward
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes. 5 crossmember mount
- Posts: Galvanized steel "A" slotted logistics posts
- Roof: One piece aluminum roof
- Floor: 1-3/8" laminated hardwood floor secured by 3 screws per board at each crossmember
- Scuff: 12" fluted aluminum side scuff-liner with a 12" Flat Steel Plate in nose of trailer
- Rear Doors: 3/4" plastic coated roll-door with 60" door-track protectors
