DRY VANS
48
EQUIPMENT SPECIFICATION

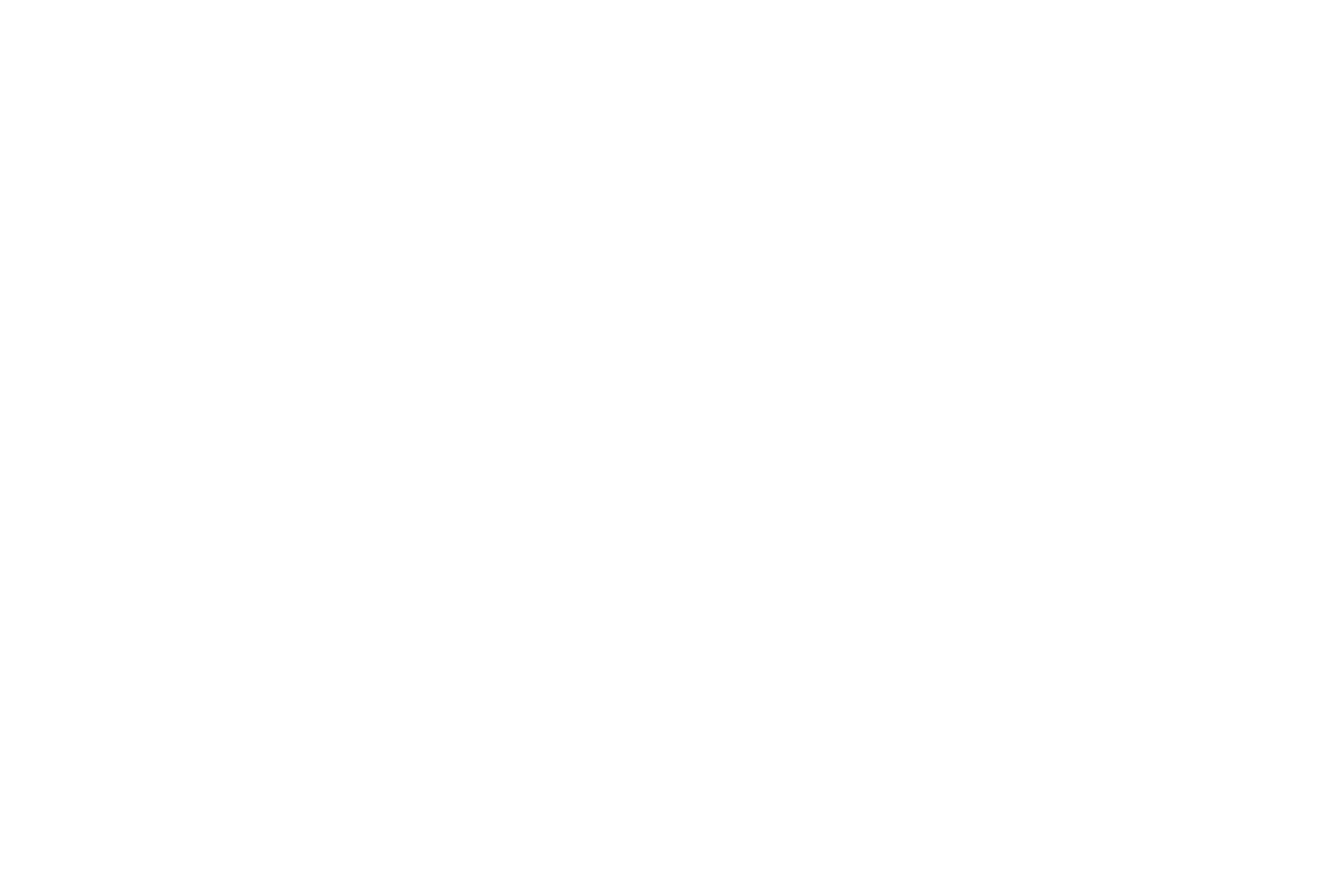

48 Ft Spring-Ride, Roll-Door
Cubic Capacity: 3,570 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63 m
48'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Overall Height
4,115 mm
13' 6''
Coupler Height
1,194 mm
47''
Kingpin Setting
914 mm
36''
Dock Height
1,270 mm
50''
Inside Width
2,515 mm
99''
Inside Height
2,794 mm
110''
Cubic Capacity
101.09 m³
3,570 ft³
Weight (+/- 3%)
6,260 kg
13,800 lbs
Door Opening
Feature
Metric
Imperial
Width
2,388 mm
94''
Height
2,642 mm
104''
Mechanics & Features
- Suspension: Full slide range, variable-position tandem axles with spring-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant.
- Tires: 295/75R 22.5 premium radial tires.
- Wheels: 8.25" x 22.5" steel hub-piloted wheels.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 2 sensor / 1 modulator-valve system.
- Upper Coupler: AAR certified coupler with 1/4" pick-up plate and 5/16" 5th-wheel plate.
- Crossmembers: 4" steel I-beam crossmembers on 12" centers with additional crossmembers at rear on 8" centers.
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes.
- Posts: Galvanized steel posts on 24" centers, 12" or 16" centers from landing gear forward.
- Cargo Control: 1 row of "E" track (full length, both sides) located 48" from floor.
- Roof: One piece translucent roof with 30% translucency.
- Floor: 1-3/8" laminated hardwood floor secured by 3 screws per board at each crossmember.
- Scuff: 12" fluted aluminum side scuff-liner with a 12" Flat Steel Plate in nose of trailer.
- Rear Doors: 3/4" plastic coated roll-door with 60" door-track protectors.
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground.
- Electrical Connections: 7-way ATA plug with no circuit breakers.
- Air Connections: Swivel gladhands mounted on roadside.
