DRY VANS
53
EQUIPMENT SPECIFICATION

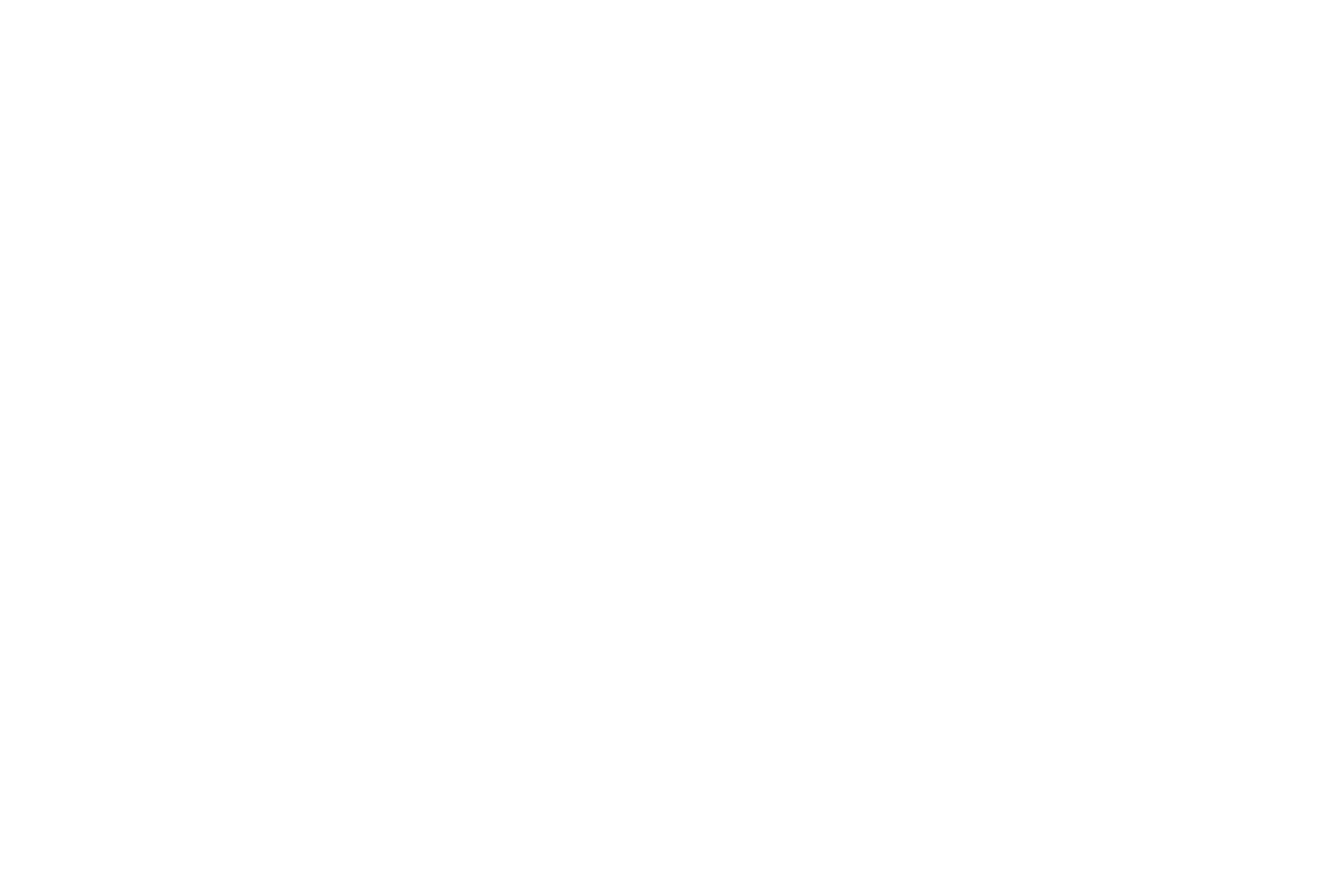

53 Ft Plate Air-Ride, Swing-Door
Cubic Capacity: 4,060 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
16.15 m
53'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Overall Height
4,115 mm
13' 6''
Coupler Height
1,194 mm
47''
Kingpin Setting
914 mm
36''
Dock Height
1,270 mm
50''
Inside Width
2,565 mm
101''
Inside Height
2,794 mm
110''
Cubic Capacity
114.97 m³
4,060 ft³
Weight (+/- 3%)
6,577 kg
14,500 lbs
Door Opening
Feature
Metric
Imperial
Width
2,515 mm
99''
Height
2,794 mm
110''
Mechanics & Features
- Suspension: Full slide range, variable-position tridem axles with Air-Ride suspension. Airbags equipped with self-regulating height control valve and manual dump valve.
- Axles: 5/8" axle wall, 25,000 lb. capacity with synthetic wheel-end lubricant
- Tires: 295/75R 22.5 premium radial tires
- Wheels/ABS: 2 sensor / 1 modulator-valve system
- Upper Coupler: AAR certified coupler with 1/4" pick-up plate and 5/16" 5th-wheel plate. Interior coupler surfaces sealed with corrosion resistant coating
- Crossmembers: 4" steel I-beam crossmembers on 12" centers with additional crossmembers at rear on 8" centers. Inverted-hat crossmembers from landing gear forward
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes. 5 crossmember mount
- Posts: Aluminum "A" slotted logistics posts, 5 additional sidewall stiffeners per side
- Roof: One piece aluminum roof
- Floor: 1-3/8" laminated hardwood floor secured by 3 screws per board at each crossmember
- Scuff: 6" aluminum scuff, integral with bottom rail. 12" Flat Steel Plate in nose of trailer
- Rear Doors: 3/4" plymetal construction swing-doors, with 5 hinges and 2 locking-rods per door
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground
- Electrical Connections: 7-way ATA plug with no circuit breakers
- Air Connections: Swivel gladhands mounted on roadside
