DRY VANS
53
EQUIPMENT SPECIFICATION

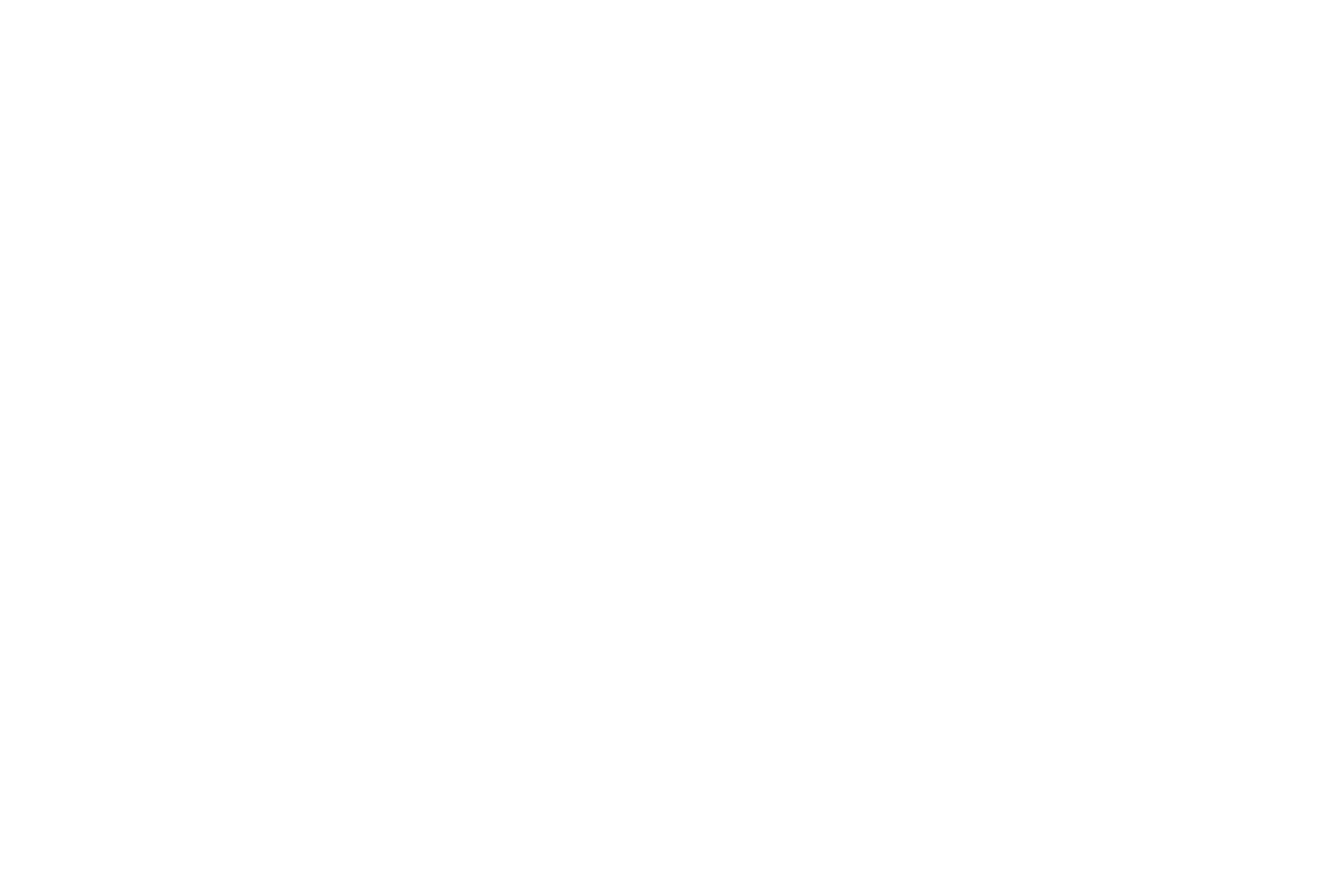

Spring-Ride, Swing-Door
Cubic Capacity: 4,005 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
16.15 m
53'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Overall Height
4,115 mm
13' 6''
Coupler Height
1,194 mm
47''
Kingpin Setting
914 mm
36''
Dock Height
1,270 mm
50''
Inside Width (at liner)
2,540 mm
100''
Inside Height
2,794 mm
110''
Cubic Capacity
113.41 m³
4,005 ft³
Weight (+/- 3%)
6,486 kg
14,300 lbs
Door Opening
Feature
Metric
Imperial
Width
2,388 mm
94''
Height
2,642 mm
104''
Mechanics & Features
- Suspension: Full slide range, variable-position tandem axles with spring-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant.
- Tires: 295/75R 22.5 premium radial tires.
- Wheels: 8.25" x 22.5" steel hub-piloted wheels.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 2 sensor / 1 modulator-valve system.
- Upper Coupler: AAR certified coupler with 1/4" pick-up plate and 5/16" 5th-wheel plate.
- Crossmembers: 4" steel I-beam crossmembers on 12" centers; additional at rear on 8" centers.
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes.
- Posts: Galvanized steel posts on 24" centers (12" or 16" centers forward of landing gear).
- Roof: One piece translucent roof with 30% translucency.
- Floor: 1-3/8" laminated hardwood floor secured by 3 screws per board at each crossmember.
- Scuff: 12" fluted aluminum side scuff-liner with a 12" Flat Steel Plate in nose.
- Rear Doors: 3/4" plastic coated roll-door.
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground.
- Electrical/Air: 7-way ATA plug; Swivel gladhands mounted on roadside.
