DRY VANS
53
EQUIPMENT SPECIFICATION

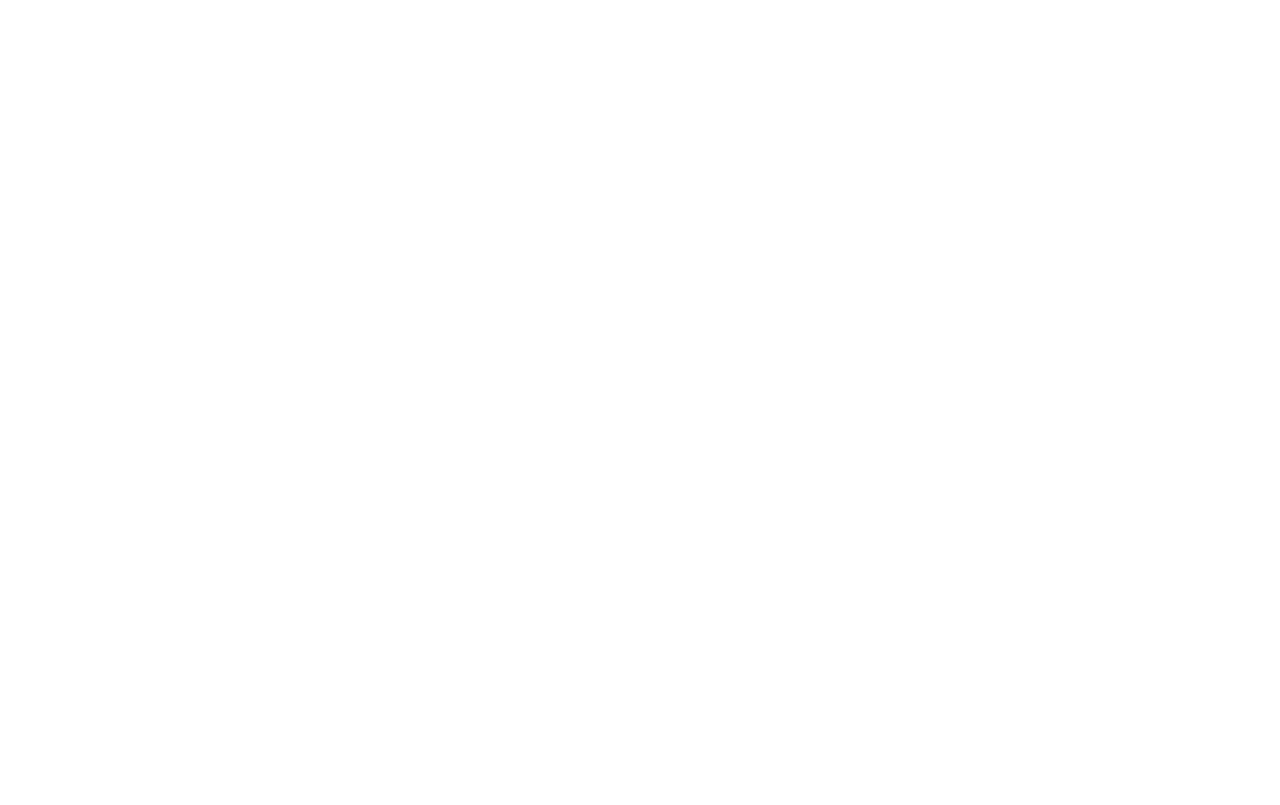

Tridem Spring-Ride, Swing Door (2003+)
Cubic Capacity: 4,005 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
16.15 m
53'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Overall Height
4,115 mm
13' 6''
Coupler Height
1,194 mm
47''
Kingpin Setting
914 mm
36''
Dock Height
1,270 mm
50''
Inside Width (at liner)
2,540 mm
100''
Inside Height
2,794 mm
110''
Cubic Capacity
113.41 m³
4,005 ft³
Weight (+/- 3%)
7,711 kg
17,000 lbs
Door Opening
Feature
Metric
Imperial
Width
2,502 mm
98.5''
Height
2,794 mm
110''
Mechanics & Features
- Suspension: Full slide range, tridem axles 60" centers, spring-ride
- Axles: 1/2" wall, 22,500 lb
- Tires: 295/75R 22.5 radial
- Wheels: 8.25"x22.5" steel hub-piloted
- Brakes: 16-1/2"x7"x3/4" s-cam
- ABS: 4S/2M
- Upper Coupler: AAR certified, 1/4" pick-up, 5/16" 5th-wheel
- Crossmembers: 4" steel I-beam, 8" centers
- Landing Gear: AAR certified, 2-speed
- Posts: Galvanized steel, 24" centers
- Roof: .040 aluminum
- Skylights: Three 4" round per side
- Floor: 1-1/4" heavy duty aluminum, two nailing strips
- Scuff: 12" fluted aluminum side, 12" flat steel nose
- Rear Doors: 3/4" plymetal swing, 5 hinges, 1 locking-rod
- Lights & Wiring: Sealed-beam, internal ground
- Electrical: 7-way ATA
- Air Connections: Swivel gladhands
