DRY VANS
57
EQUIPMENT SPECIFICATION

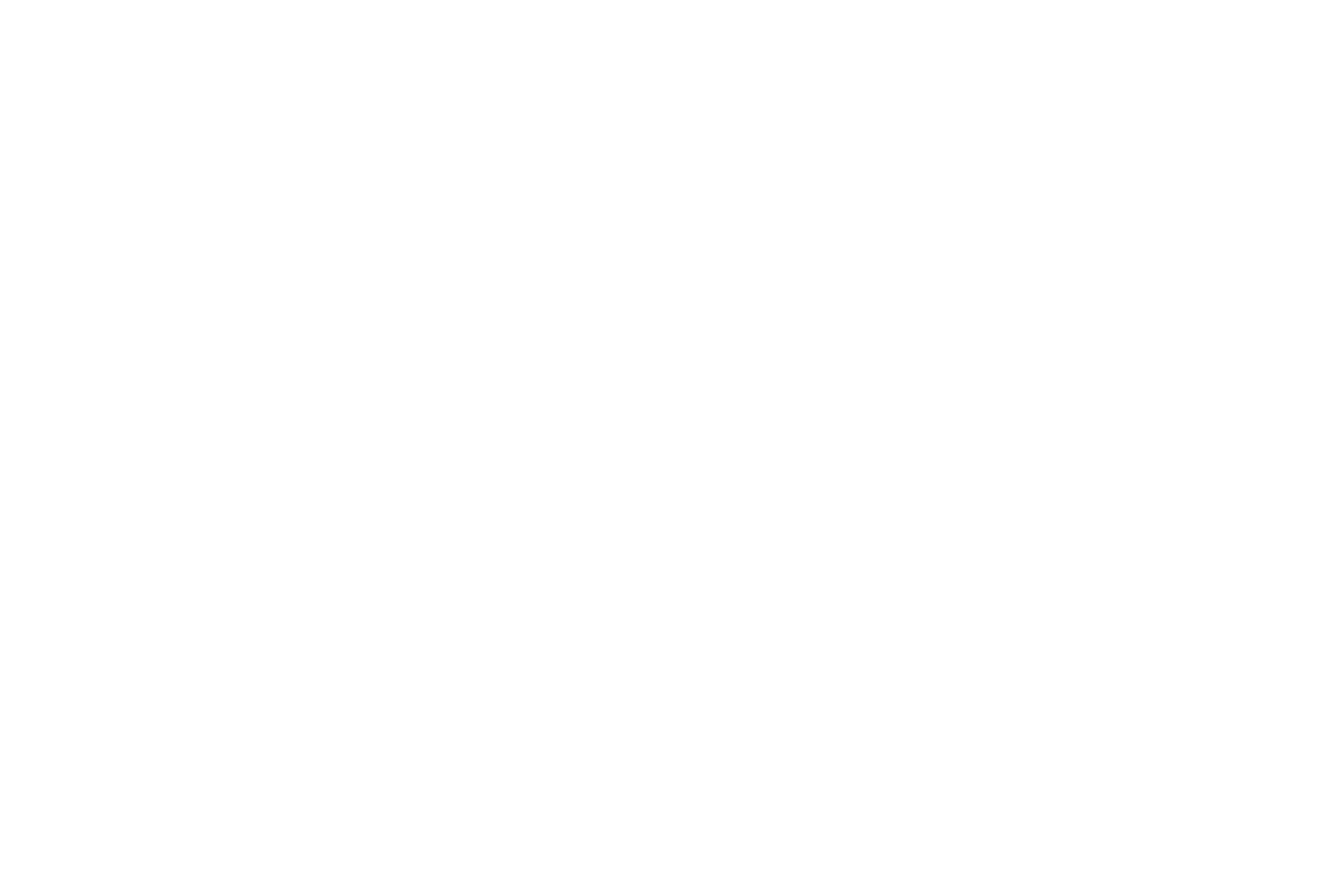

57 Ft Plate Spring-Ride, Swing-Door
Cubic Capacity: 4,312 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
17.37 m
57'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Overall Height
4,115 mm
13' 6''
Coupler Height
1,194 mm
47''
Kingpin Setting
914 mm
36''
Dock Height
1,270 mm
50''
Inside Width
2,540 mm
100''
Inside Height
2,794 mm
110''
Cubic Capacity
122.10 m³
4,312 ft³
Weight (+/- 3%)
6,804 kg
15,000 lbs
Door Opening
Feature
Metric
Imperial
Width
2,502 mm
98.5''
Height
2,794 mm
110''
Mechanics & Features
- Suspension: Full slide range, variable-position tandem axles with spring-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant
- Tires: 295/75R 22.5 premium radial tires
- Wheels: 8.25" x 22.5" steel hub-piloted wheels
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes
- ABS: 2 sensor / 1 modulator-valve system
- Upper Coupler: AAR certified coupler with 1/4" pick-up plate and 5/16" 5th-wheel plate. Interior coupler surfaces sealed with corrosion resistant coating
- Crossmembers: 4" steel I-beam crossmembers on 12" centers with additional crossmembers at rear on 8" centers. Inverted-hat crossmembers from landing gear forward
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes. 5 crossmember mount
- Posts: Galvanized steel posts on 24" centers, 12" centers from landing gear forward
- Roof: One piece translucent roof with 30% translucency
- Floor: 1-3/8" laminated hardwood floor secured by 3 screws per board at each crossmember
- Scuff: 12" fluted aluminum side scuff-liner with a 12" Flat Steel Plate in nose of trailer
- Rear Doors: 3/4" plymetal construction swing-doors, with 5 hinges and 1 locking-rod per door
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground
- Electrical Connections: 7-way ATA plug with no circuit breakers
- Air Connections: Swivel gladhands mounted on roadside
