EQUIPMENT SPECIFICATION

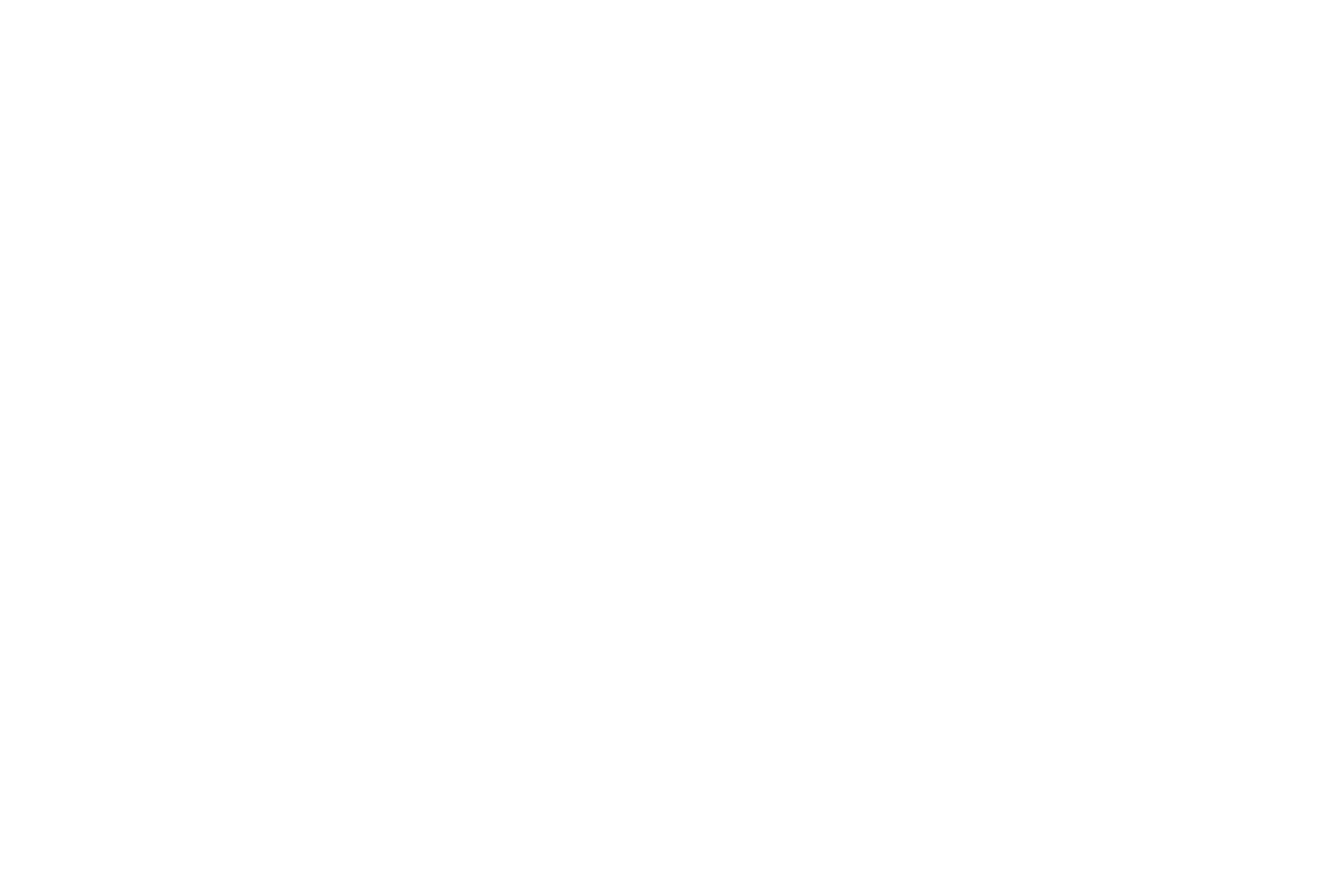

Double-Drop 48' X 102 Air-Ride
Axle Capacity: 25,000 lbs (Per Axle)
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63 m
48'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height - Center Deck
559 mm
22''
Deck Height - Rear Deck
1,016 mm
40''
Deck Length
8,890 mm
29' 2''
Coupler Height
1,245 mm
49''
Kingpin Setting
610 mm
24''
Weight (+/- 3%)
6,940 kg
15,300 lbs
Mechanics & Features
- Suspension: Fixed position tandem axles with Air-Ride suspension
- Axles: 5/8" axle wall, 25,000 lb. capacity
- Tires: 255/70R 22.5 premium radial tires
- Wheels: 8.25" x 22.5" steel hub-piloted wheels
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes
- ABS: 2 sensor / 1 modulator-valve system
- Upper Coupler: AAR certified coupler
- Main Frame: Fabricated high-tensile steel main beams
- Side Rails: 6" structural steel channel
- Rub Rails: 2" wide rub rails
- Stake Pockets: 1/4" thick, external steel stake pockets on 24" centers. Full length both sides, front and rear
- Crossmembers: 4" steel I-beam crossmembers on 12" centers
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes
- Cargo Control: Combination winches and "c" type rope-hooks
- Floor: 1-1/8" apitong floor
- Return Air Bulkhead: 48" Flat, Removable Bulkhead
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground
- Electrical Connections: 7-way ATA plug with no circuit breakers
- Air Connections: Stationary gladhands mounted on roadside
