EQUIPMENT SPECIFICATION

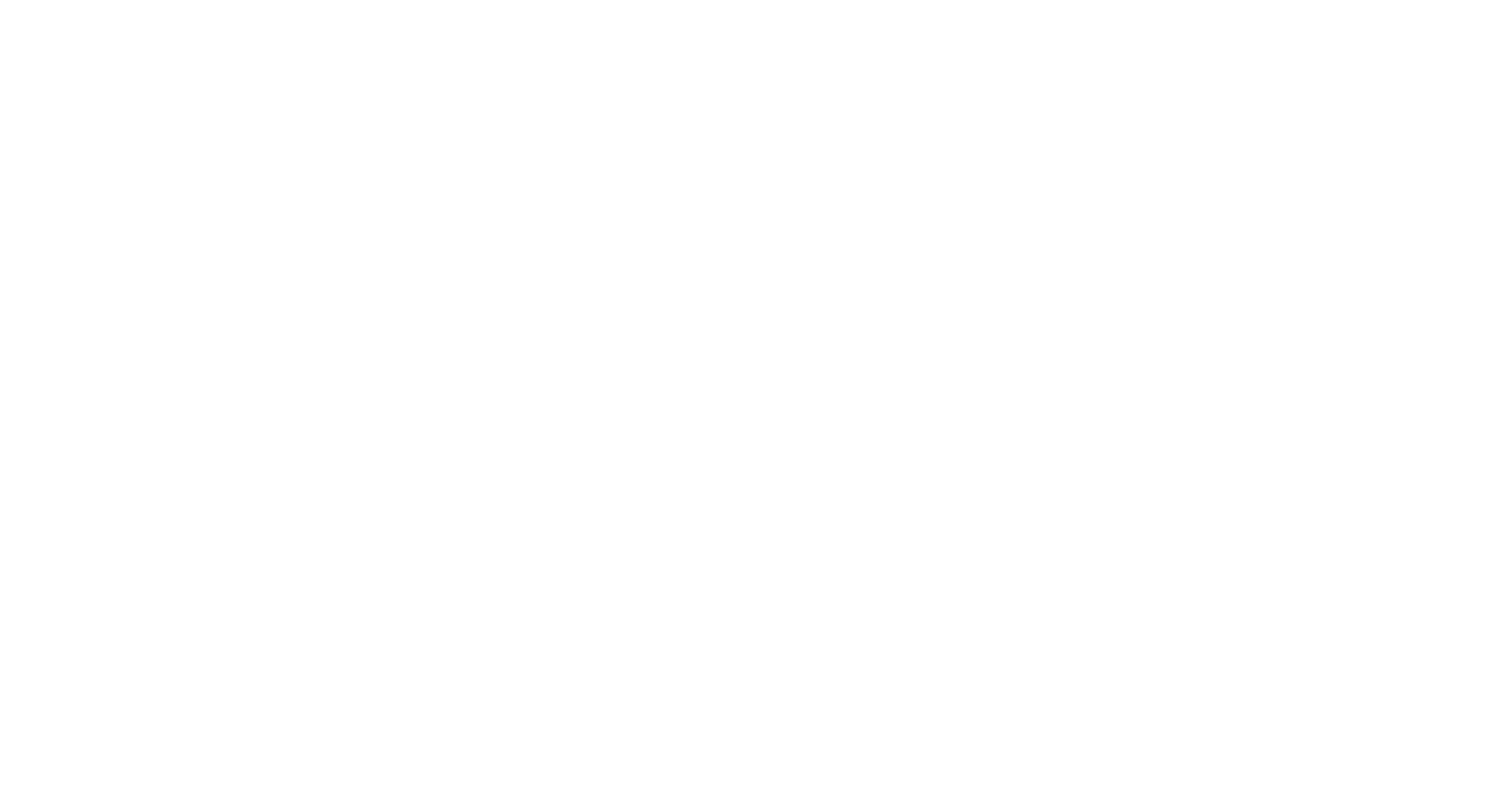

Single-Drop 48' X 102 Air-Ride Spread-Axle
Weight (+/- 3%): 13,300 lbs
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63 m
48'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height - Front Deck
1,524 mm
60''
Deck Height - Rear Deck
1,016 mm
40''
Deck Length - Front Deck
3,353 mm
11' 0''
Deck Length - Rear Deck
11,278 mm
37' 0''
Coupler Height
1,270 mm
50''
Kingpin Setting
610 mm
24''
Weight (+/- 3%)
6,033 kg
13,300 lbs
Mechanics & Features
- Suspension: 10' 1" spread axle with Air-Ride suspension. Airbags equipped with self-regulating height control valve and manual dump valve.
- Axles: 5/8" axle wall, 25,000 lb. capacity with synthetic wheel-end lubricant.
- Tires: 255/70R 22.5 premium radial tires.
- Wheels: 8.25" x 22.5" steel hub-piloted wheels.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 4 sensor / 2 modulator-valve system.
- Upper Coupler: AAR certified coupler with 1/4" pick-up and 5th-wheel plates. Interior coupler surfaces sealed with corrosion resistant coating.
- Main Frame: Fabricated high-tensile steel main beams.
- Side Rails: 6" structural steel channel.
- Rub Rails: 2" wide rub rails. Full length both sides, front and rear.
- Stake Pockets: 1/4" thick, external steel stake pockets on 24" centers. Full length both sides, front and rear.
