EQUIPMENT SPECIFICATION

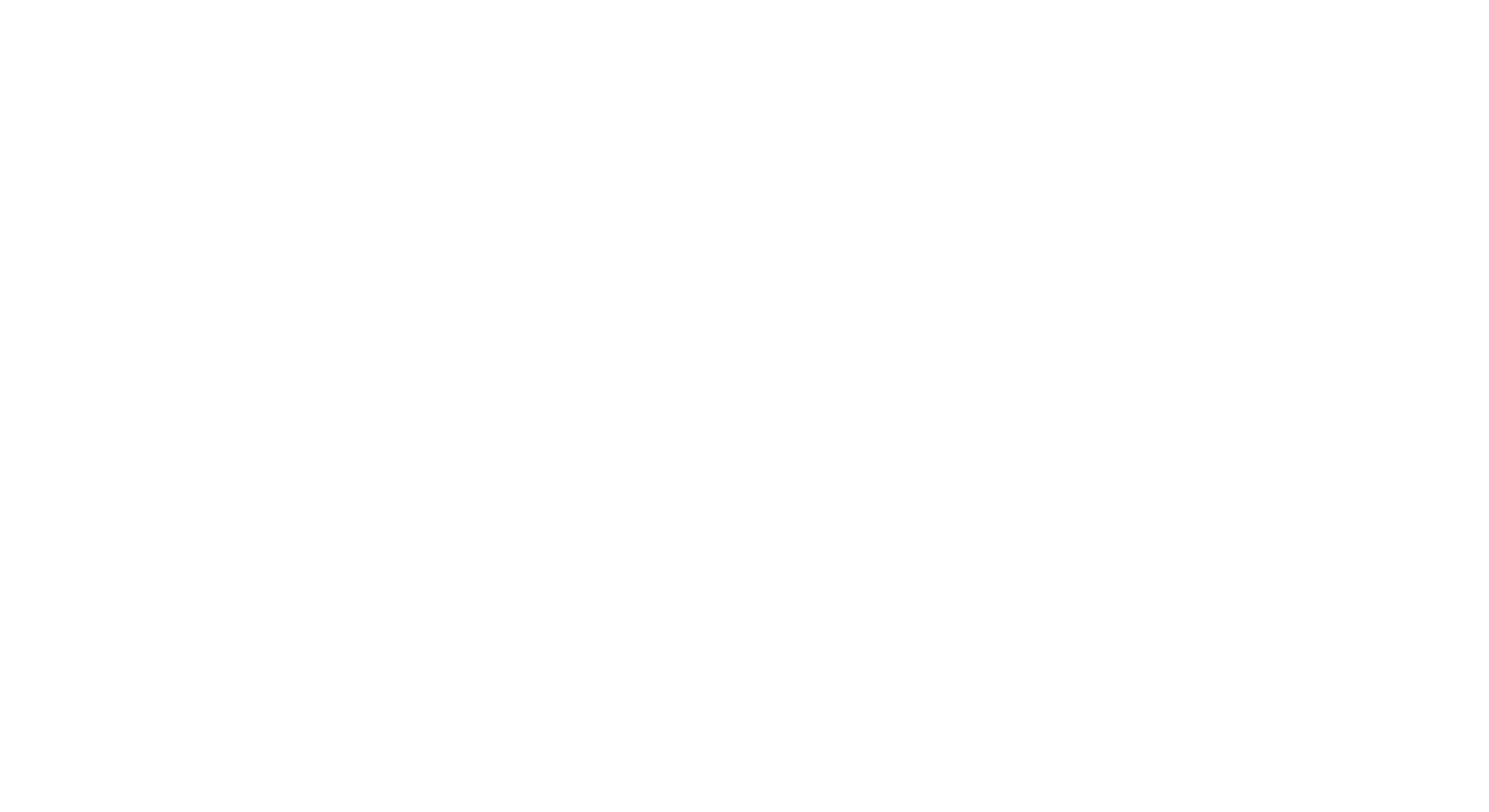

Single-Drop 48' X 102 Air-Ride, Spread-Axle Aluminum/Steel Combination
GVWR: 74,963 lbs | Suspension: up to 56,000 lbs
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63 m
48'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height - Front Deck
1,578 mm
62.125''
Deck Height - Rear Deck
1,016 mm
40''
Deck Length - Front Deck
3,048 mm
10' 0''
Deck Length - Rear Deck
11,582 mm
38' 0''
Coupler Height
1,245 mm
49''
Kingpin Setting
457 mm
18''
Weight (+/- 3%)
5,534 kg
12,200 lbs
Mechanics & Features
- Suspension: 10' 2" spread axle with Air-Ride suspension. Airbags equipped with self-regulating height control valve. Auxiliary electric dump valve wired to rear axle.
- Axles: 7/16" axle wall, 23,000 lb. capacity with synthetic wheel-end lubricant.
- Tires: 255/70R 22.5 premium radial tires.
- Wheels: 8.25" x 22.5" steel hub-piloted wheels.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change, extended life brake shoes.
- ABS: 4 sensor / 2 modulator-valve system.
- Upper Coupler: AAR certified coupler with 1/4" pick-up and 5th-wheel plates. Interior coupler surfaces sealed with corrosion resistant coating.
- Main Frame: Fabricated high-tensile steel main beams.
- Side Rails: 5-3/4" aluminum extrusion.
- Rub Rails: 3/8" x 3" aluminum rub rails. Full length both sides and rear with double pipe spool reinforcements.
- Stake Pockets: Extruded aluminum stake pockets on 24" centers. Full length both sides and rear, steel on front.
