EQUIPMENT SPECIFICATION

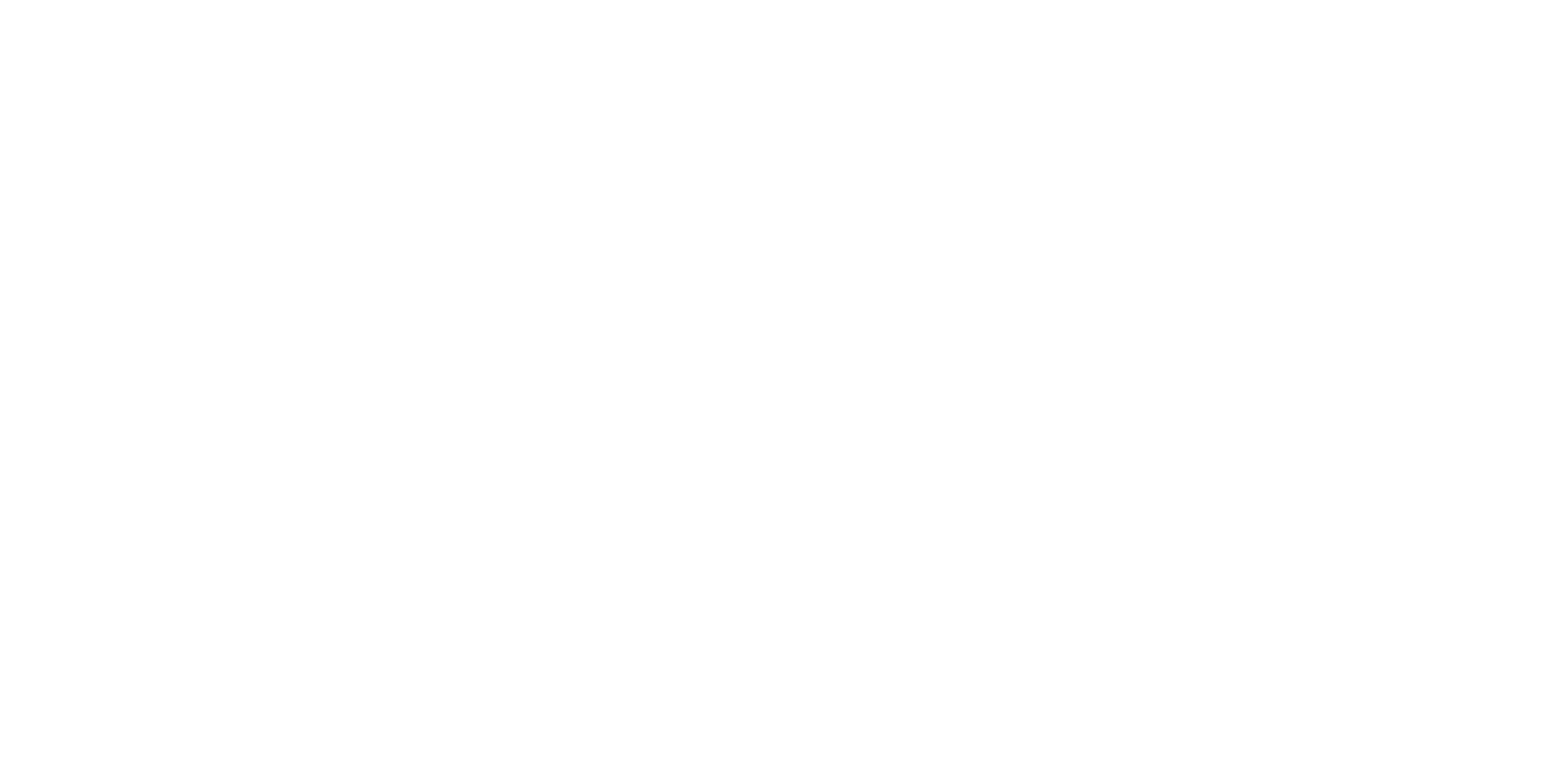

50 Ton Lowboy 50' Air-Ride, Detachable Goosneck
Payload: 50 Tons (100,000 lbs)
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
15.24 m
50'
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height - Main Deck
508 mm
20''
Deck Height - Rear Deck
991 mm
39''
Deck Length - Center Deck
610 mm
24''
Coupler Height
1,219 mm
48''
Kingpin Setting
406 mm
16''
Weight (+/- 3%)
8,528 kg
18,800 lbs
Mechanics & Features
- Suspension: Fixed position tridem axles with Air-Ride suspension.
- Axles: 5/8" axle wall, 25,000 lb. capacity.
- Tires: 255/70R 22.5 premium radial.
- Wheels: 8.25" x 22.5" steel hub-piloted.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change shoes.
- ABS: 2s/1m system.
- Upper Coupler: AAR certified with 1/4" pick-up and 5th-wheel plates.
- Side Rails: 6" structural steel channel.
- Stake Pockets: 1/4" thick, external steel on 24" centers.
- Crossmembers: 4" steel I-beam on 12" centers.
