EQUIPMENT SPECIFICATION

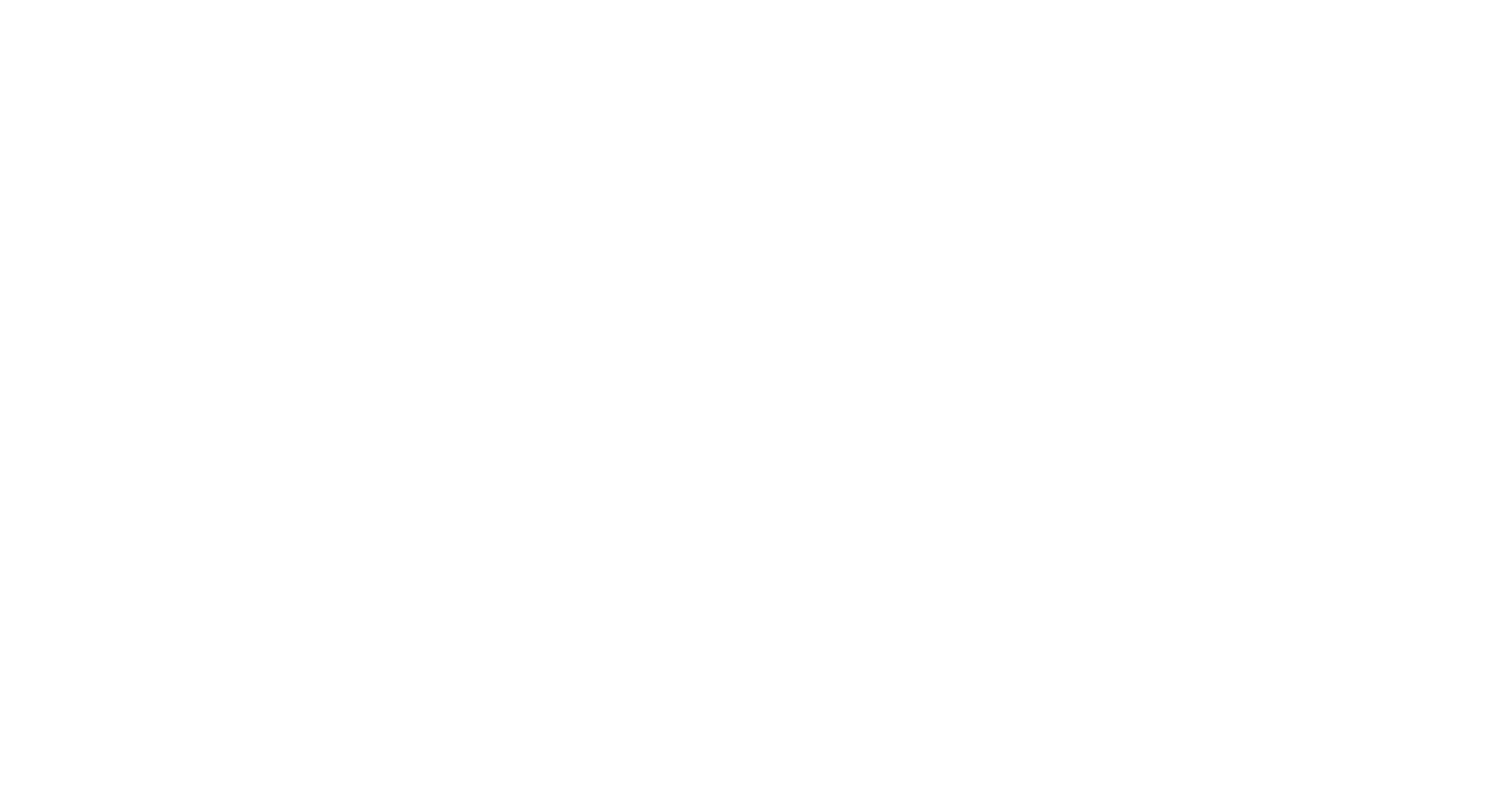

Double-Drop Extendable 48' to 69' Air-Ride
Weight (+/- 3%): 19,600 lbs
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63m to 21.03m
48' to 69' (Extends in 5' Increments)
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height - Center Deck
559 mm
22''
Deck Height - Rear Deck
1,016 mm
40''
Deck Length
2,794 mm
9' 2''
Coupler Height
1,270 mm
50''
Kingpin Setting
457 mm
18''
Weight (+/- 3%)
8,890 kg
19,600 lbs
Mechanics & Features
- Suspension: Air-Ride.
- Axles: 5" round, 22,500 lb. capacity.
- Tires: 255/70R 22.5 premium radial.
- Wheels: 8.25" x 22.5" steel hub-piloted.
- Brakes: 12-1/4" x 7-1/2" s-cam, quick-change shoes.
- ABS: 2s/1m system.
- Upper Coupler: AAR certified with 1/4" pick-up and 5th-wheel plates.
- Side Rails: 6" structural steel channel.
- Stake Pockets: 1/4" thick, external steel on 24" centers.
- Crossmembers: 4" steel I-beam on 12" centers.
