EQUIPMENT SPECIFICATION

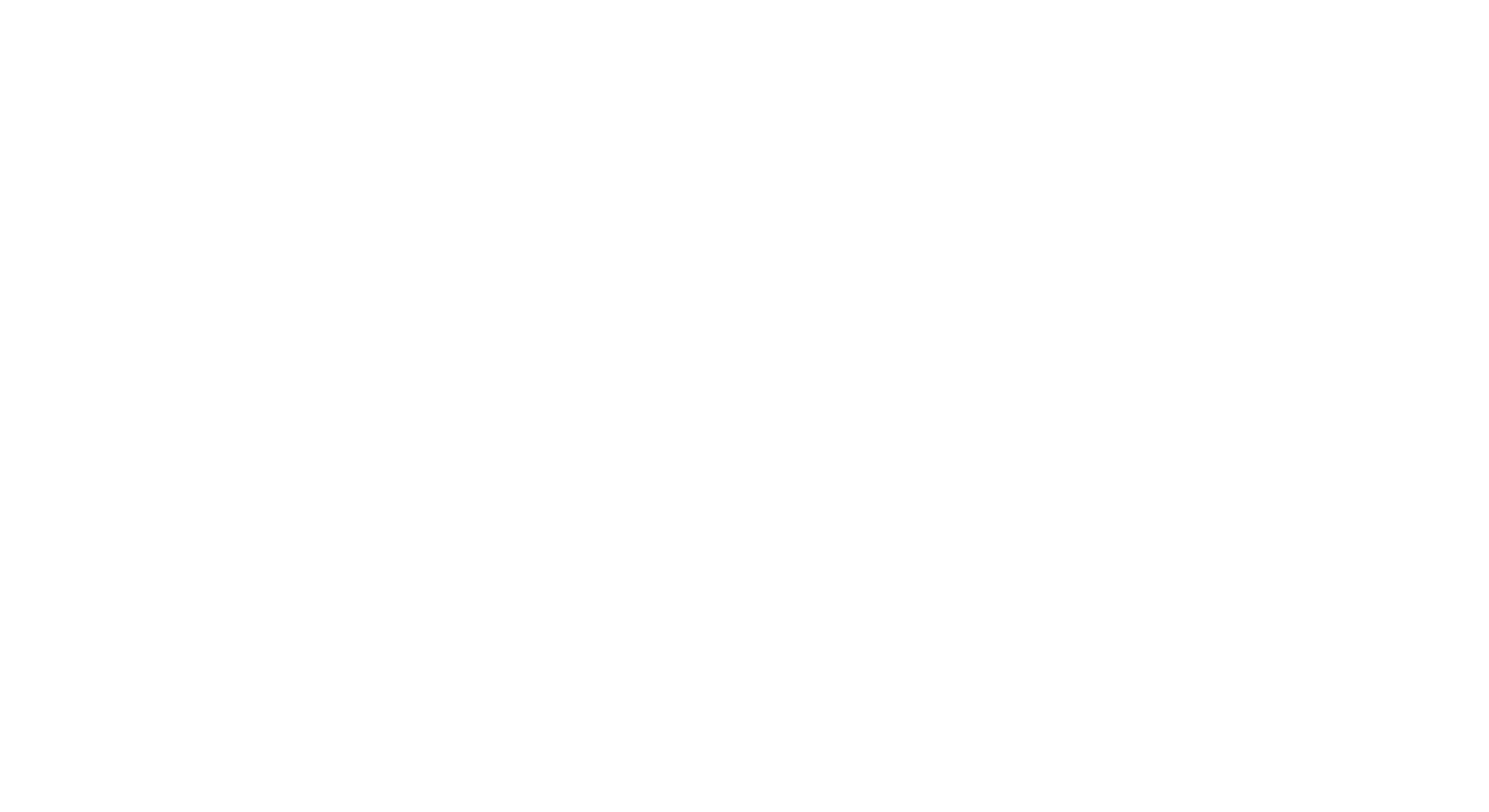

Single-Drop Extendable 48' to 69' Air-Ride
Weight (+/- 3%): 18,500 lbs
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63m to 21.03m
48' to 69' (Extends in 5' Increments)
Overall Width
2,591 mm
102''
Overall Frame Width
2,591 mm
102''
Deck Height - Front Deck
1,524 mm
60''
Deck Height - Rear Deck
1,016 mm
40''
Deck Length - Front Deck
3,353 mm
11' 0''
Deck Length - Rear Deck
11,278 mm
37' 0''
Coupler Height
1,270 mm
50''
Kingpin Setting
610 mm
24''
Weight (+/- 3%)
8,391 kg
18,500 lbs
Mechanics & Features
- Suspension: Fixed position tandem axles with Air-Ride suspension; airbags with self-regulating height control and manual dump valve.
- Axles: 5/8" axle wall, 25,000 lb. capacity.
- Tires: 255/70R 22.5 premium radial.
- Wheels: 8.25" x 22.5" steel hub-piloted.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change shoes.
- ABS: 2s/1m system.
- Upper Coupler: AAR certified with 1/4" pick-up and 5th-wheel plates.
- Side Rails: 6" structural steel channel.
- Stake Pockets: 1/4" thick, external steel on 24" centers.
- Crossmembers: 4" steel I-beam on 12" centers.
