EQUIPMENT SPECIFICATION

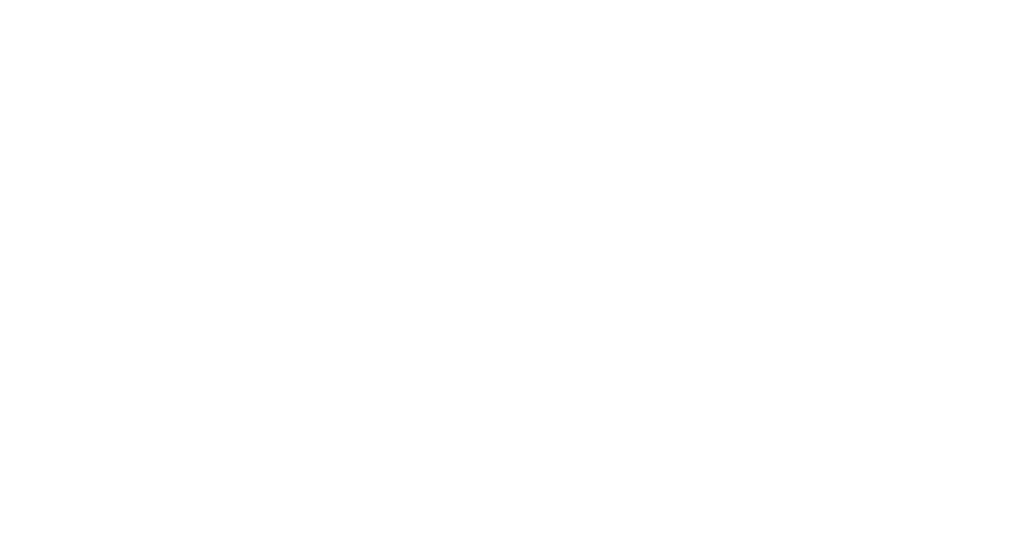

Straight-Frame Extendable 48' to 80' Spring-Ride
Payload: 80,000 lbs (distributed)
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63m to 24.38m
48' to 80' (Extends in 5' Increments)
Overall Width
2,438 mm
96''
Overall Frame Width
2,438 mm
96''
Deck Height
1,524 mm
60''
Coupler Height
1,270 mm
50''
Kingpin Setting
914 mm
36''
Weight (+/- 3%)
7,257 kg
16,000 lbs
Mechanics & Features
- Suspension: Full slide range, variable-position tandem axles with spring-ride.
- Axles: 1/2" axle wall, 22,500lb. capacity.
- Tires: 295/75R 22.5 premium radial.
- Wheels: 8.25" x 22.5" steel hub-piloted.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change shoes.
- ABS: 2s/1m system.
- Upper Coupler: AAR certified with 1/4" pick-up and 5th-wheel plates.
- Side Rails: 6" structural steel channel.
- Stake Pockets: 1/4" thick, external steel on 24" centers.
- Crossmembers: 4" steel I-beam on 12" centers.
