REEFERS AND HEATED TRAILERS
28
EQUIPMENT SPECIFICATION

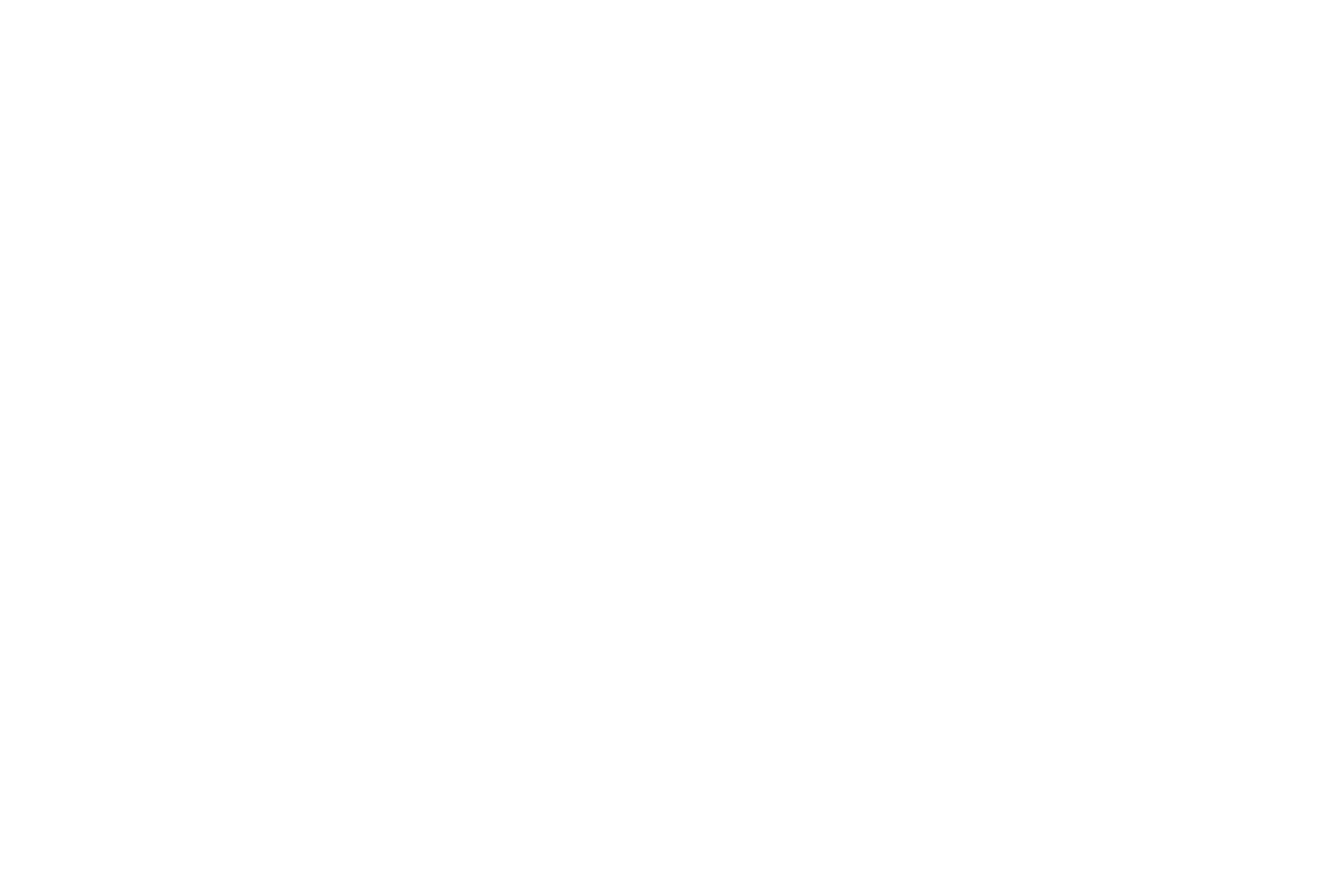

28' Spring-Ride, Roll-Door (Liftgate)
Cubic Capacity: 1,847 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
8.53 m
28'
Overall Width
2,591 mm
102"
Overall Frame Width
2,591 mm
102"
Overall Height
4,115 mm
13' 6"
Coupler Height
1,194 mm
47"
Kingpin Setting
914 mm
36"
Dock Height
1,327 mm
52 1/4"
Inside Width
2,476 mm
97 1/2"
Inside Height
2,628 mm
103 1/2"
Cubic Capacity
52.30 m³
1,847 ft³
Weight (+/- 3%)
5,806 kg
12,800 lbs
Door Opening
Feature
Metric
Imperial
Width
2,337 mm
92"
Height
2,400 mm
94 1/2"
Mechanics & Features
- Suspension: Fixed single axle with 3 leaf-spring suspension
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant
- Tires: 295/75R 22.5 premium radial tires
- Wheels: 8.25" x 22.5" steel hub-piloted wheels
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes
- ABS: 2 sensor / 1 modulator-valve system
- Refrigeration Unit: THERMO KING SBIII Smart Reefer
- Fuel Tank: 50 gallon aluminum fuel tank
- Upper Coupler: AAR certified coupler with 1/4" pick-up and 5th-wheel plates. Interior coupler surfaces sealed with corrosion resistant coating
- Crossmembers: 4" steel I-beam crossmembers on 12" centers over bogie and landing gear, with additional crossmembers at rear on 8" centers. Aluminum I-beams on 12" centers in bay-area of trailer, aluminum inverted-hat crossmembers from landing gear forward
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes. 5 crossmember mount
- Posts: Aluminum z-posts on 24" centers, 12" centers from landing gear forward
- Insulation: Polyurethane - 2-1/2" in floor, 2" in sides, 3" in roof
- Cargo Control: 2 rows of "E" track (full length, both sides) located 36" and 60" from floor
- Floor: 1-1/4" heavy-duty duct aluminum floor with forklift reinforcement package at rear
- Scuff: 12" aluminum scuff, integral with floor
- Return Air Bulkhead: Half height bulkhead with pallet stops
- Rear Frame: Stainless steel unitized construction, gusseted to body rails
- Rear Doors: 2-1/2" insulated roll-door with 60" door-track protectors
- Rear Door Access: Hydraulic Rail-Lift, with 5,000 lb. Capacity
- Side Door(s): 40" wide swing-door on curbside, located 71-1/2" from nose of trailer to center of door
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground
- Electrical Connections: 7-way ATA plug with no circuit breakers
- Air Connections: Stationary gladhands mounted on roadside
