REEFERS AND HEATED TRAILERS
48
EQUIPMENT SPECIFICATION

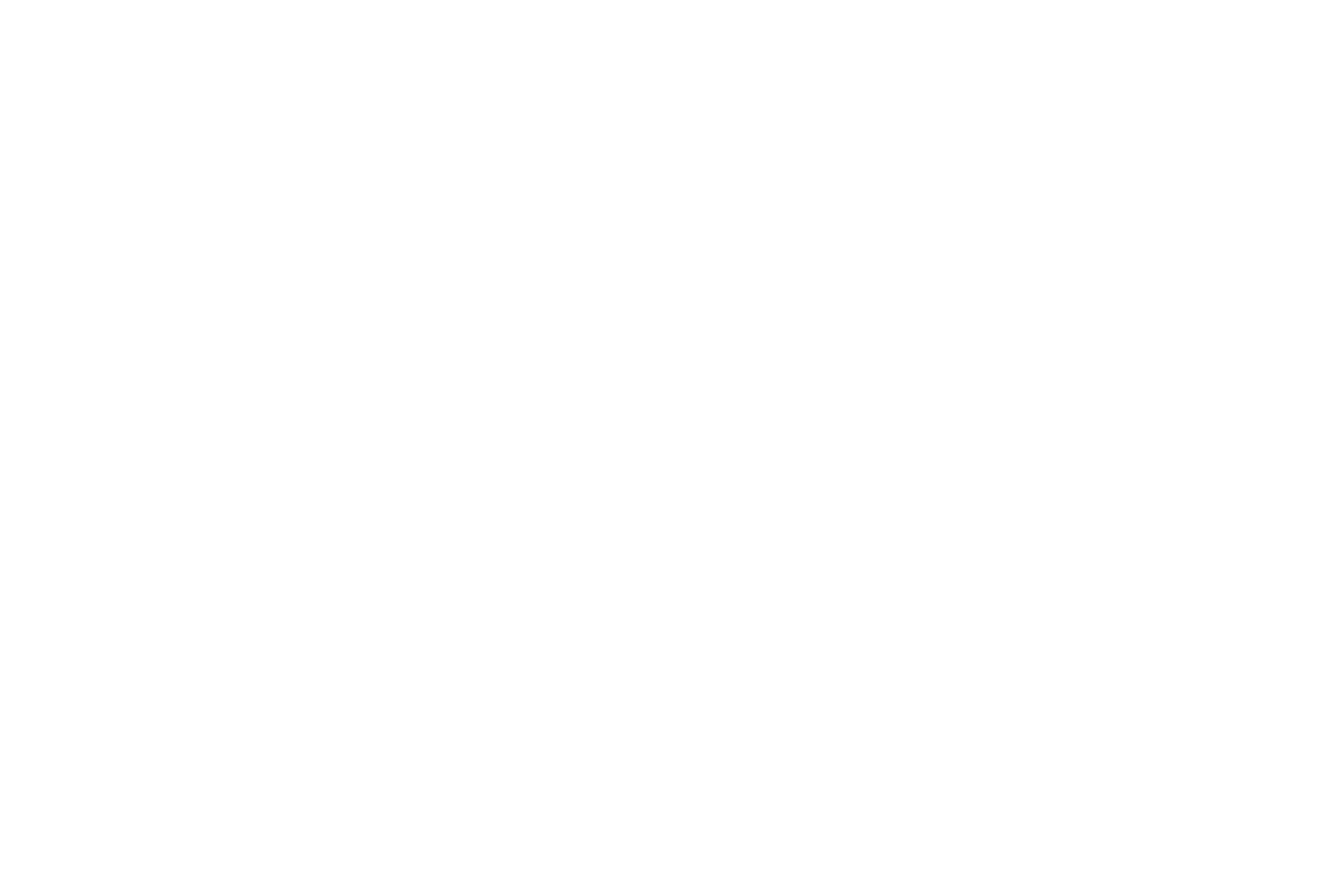

48' Spring-Ride, Roll-Door (Liftgate)
Cubic Capacity: 3,252 ft³
Trailer specification features may vary based upon model year, trailer type and location. Equipment is subject to availability at each location.
Dimensions & Capacity
Feature
Metric
Imperial
Overall Length
14.63 m
48'
Overall Width
2,591 mm
102"
Overall Frame Width
2,591 mm
102"
Overall Height
152 mm
6"
Coupler Height
1,194 mm
47"
Kingpin Setting
914 mm
36"
Dock Height
1,555.8 mm
51 1/2"
Inside Width
29,578 mm
97 1/2"
Inside Height
31,407 mm
103 1/2"
Cubic Capacity
92.09 m³
3,252 ft³
Weight (+/- 3%)
7,893 kg
17,400 lbs
Door Opening
Feature
Metric
Imperial
Width
2,337 mm
92"
Height
28,664 mm
94 1/2"
Mechanics & Features
- Suspension: Full slide range, variable-position tandem axles with spring-ride suspension.
- Axles: 1/2" axle wall, 22,500 lb. capacity with synthetic wheel-end lubricant.
- Tires: 295/75R 22.5 premium radial tires.
- Wheels: 8.25" x 22.5" steel hub-piloted wheels.
- Brakes: 16-1/2" x 7" x 3/4" s-cam, quick-change brake shoes.
- ABS: 2 sensor / 1 modulator-valve system.
- Refrigeration Unit: THERMO KING SBIII Smart Reefer.
- Fuel Tank: 50 gallon aluminum fuel tank.
- Upper Coupler: AAR certified coupler with 1/4" pick-up and 5th-wheel plates. Interior coupler surfaces sealed with corrosion resistant coating.
- Crossmembers: 4" steel I-beam crossmembers on 12" centers over bogie and landing gear. Additional crossmembers at rear on 8" centers.
- Landing Gear: AAR certified, 2-speed landing gear with internal gearbox and tilt-cushion sand shoes. 5 crossmember mount.
- Posts: Aluminum z-posts on 24" centers, 12" centers from landing gear forward.
- Insulation: Polyurethane - 2-1/2" in floor, 2" in sides, 3" in roof.
- Cargo Control: 1 row of "E" track (full length, both sides) located 48" from floor.
- Floor: 1-1/4" heavy-duty duct aluminum floor with safety grip and forklift reinforcement package at rear.
- Scuff: 12" aluminum scuff, integral with floor.
- Return Air Bulkhead: Half height bulkhead with pallet stops.
- Rear Frame: Stainless steel unitized construction, gusseted to body rails.
- Rear Doors: 2-1/2" insulated roll-door with 60" door-track protectors.
- Rear Door Access: Hydraulic Rail-Lift, with 5,000 lb. Capacity.
- Lights & Wiring: Sealed-beam lights with a fully sealed wiring harness and internal ground.
- Electrical Connections: 7-way ATA plug with no circuit breakers.
- Air Connections: Stationary gladhands mounted on roadside.
